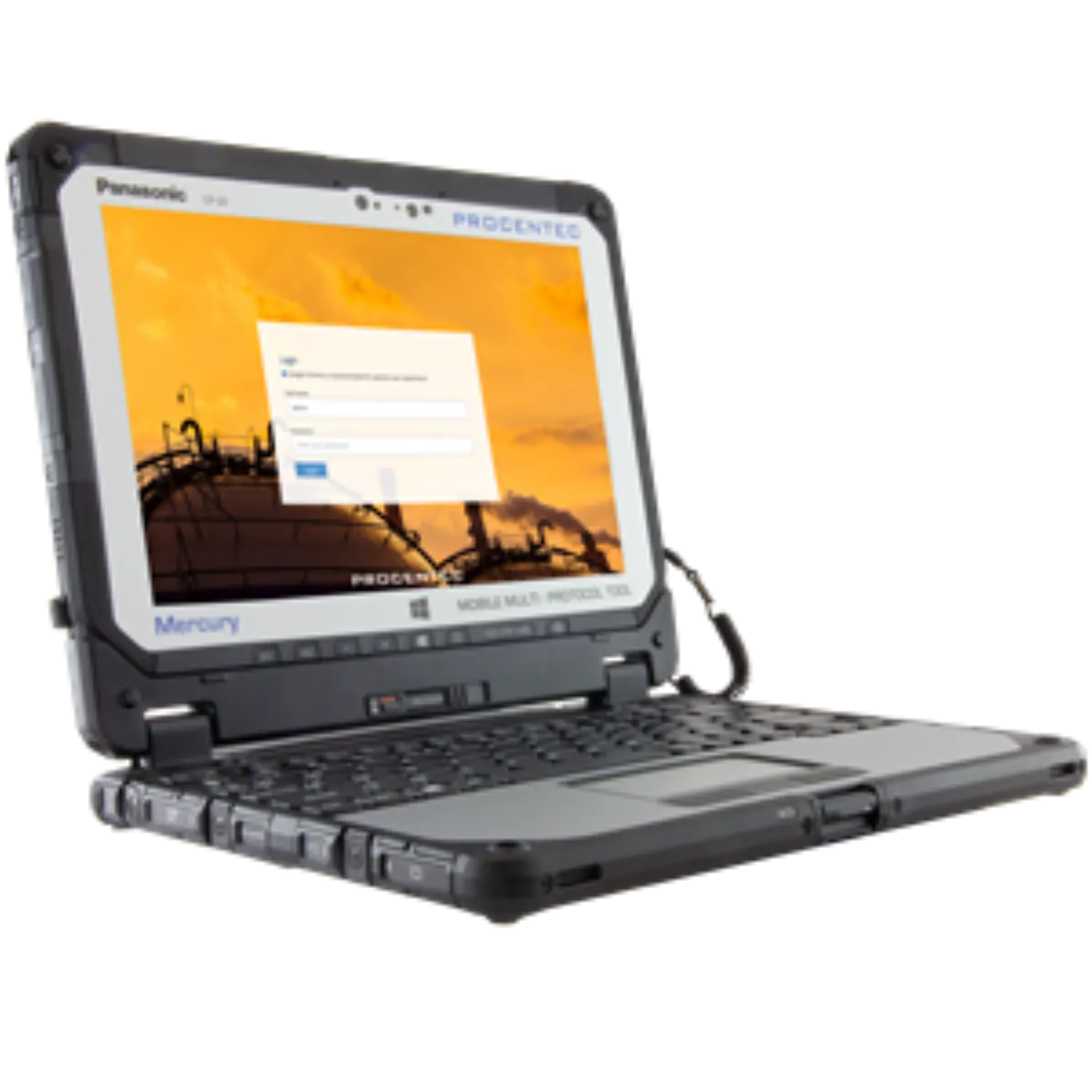

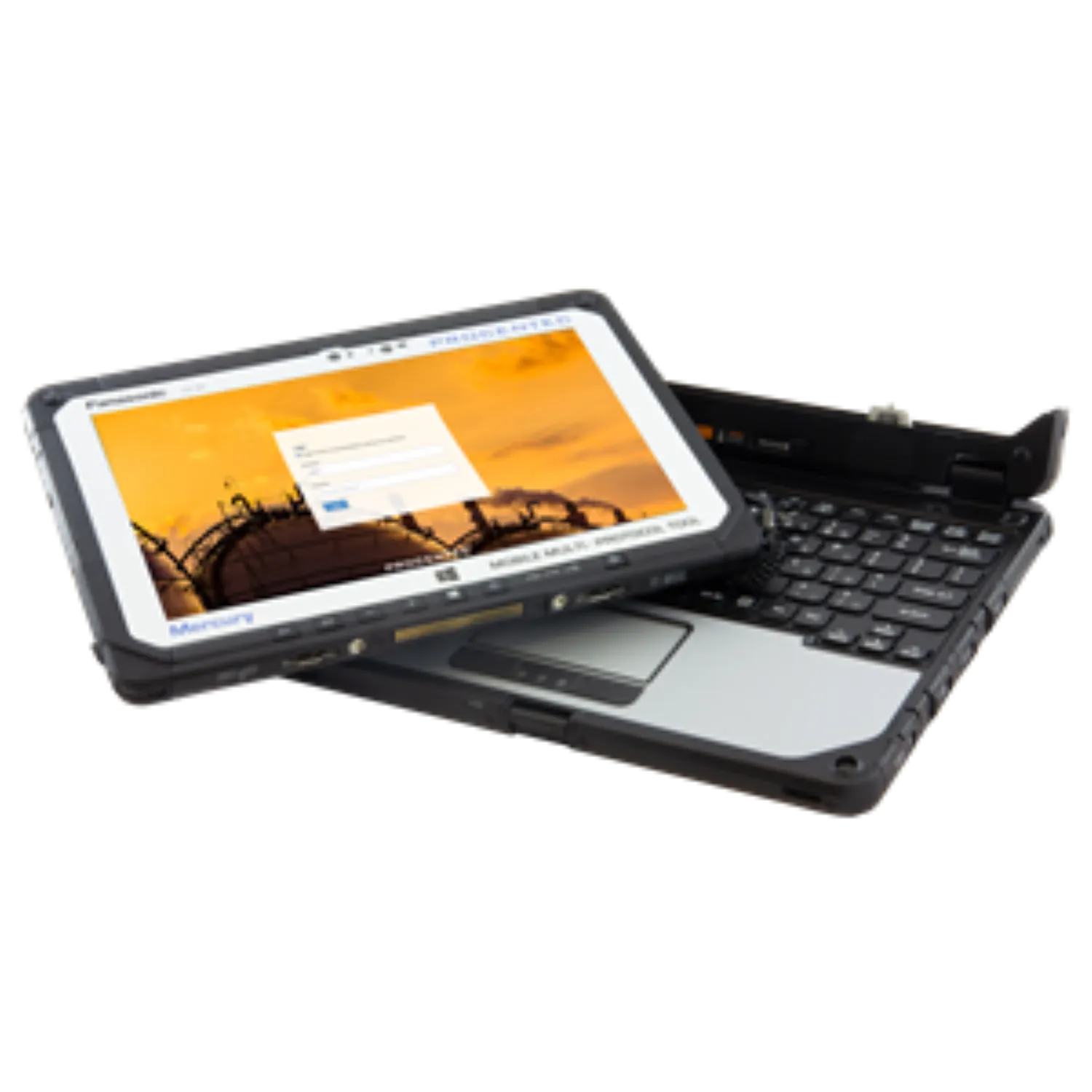

Mercury 10” device

Mercury is a rugged tablet that can be used also as a laptop. It has the Osiris software that provides high tech troubleshooting and maintenance capabilities for industrial Ethernet networks. The 10” screen provides easy to view topologies, tables and graphs. The dashboard is customizable and the software interface is easy to use. It has a remote and wireless connection and mobility for anywhere and anyplace. Device lists and alarm lists can be exported to make it easy to document issues or do further analysis. The Q-Factor feature has a weighted algorithm to score the quality of the network.

EtherTAP

EtherTAP provides a reliable network tap for Ethernet based networks. This monitoring device sends feed information to Osiris for analysis. The analysis license for Osiris is included. The device is available with 10/100 Ethernet or 1G Ethernet option.

Commissioning Wizard

The Commissioning Wizard is integrated into the Osiris software. It automates commissioning of PROFINET networks making it easy to prepare certification reports. The license for the wizard is included.

Browser Requirements

• Must support HTML5 and JavaScript
• Minimum versions for supported browsers
  - Chrome version 46 or higher (Optimal Performance)
  - Edge version 25 or higher
  - Firefox version 42 or higher
  - Safari version 5 or higher

Mercury 10" PROFINET Kit includes:

• 1 x Mercury 10” (101-830220) (4G modem included with 4G Modem option)
• 1 x PN Commissioning Wizard (101-700201),
• 1 x EtherTAP: PROFINET Analysis License (101-700204 ) ,
• 1 x EtherTAP 10/100 (513-00011A), (EtherTAP 1G included with Ethernet 1G option)
• 1 x Netilities (39020),
• 1 x TAP Din Rail Mount (70010057),
• 1 x RJ45 to RJ45 3 meter Cable (123-637GRR3),
• 1 x RJ45 to M12 3 meter Cable (123-642EMR3),
• 1 x 360 degree hand strap (101-820221),
• 1 x Carrying Case (101- 820222),
• 1 x Osiris Software (101-700100)

Order Summary
