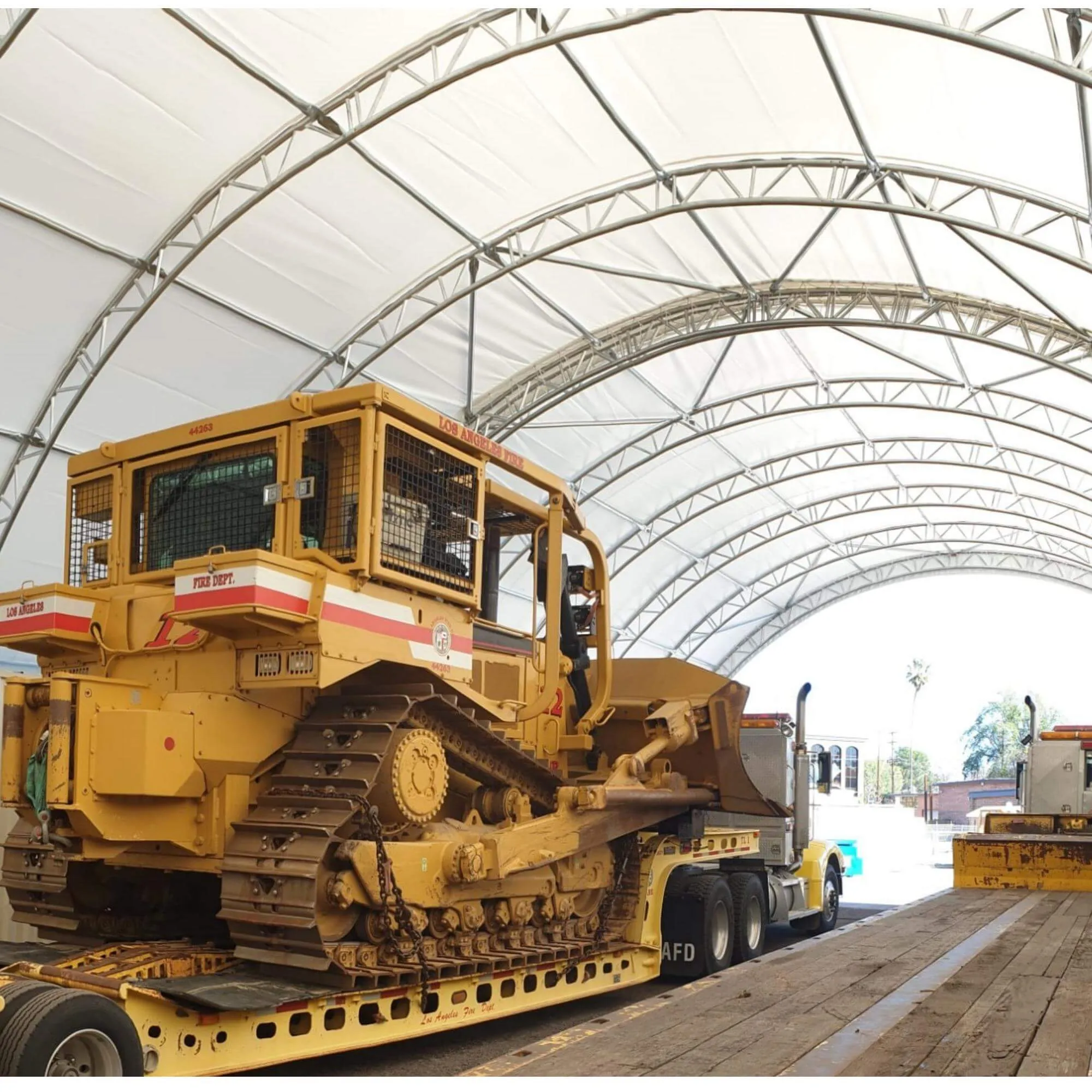

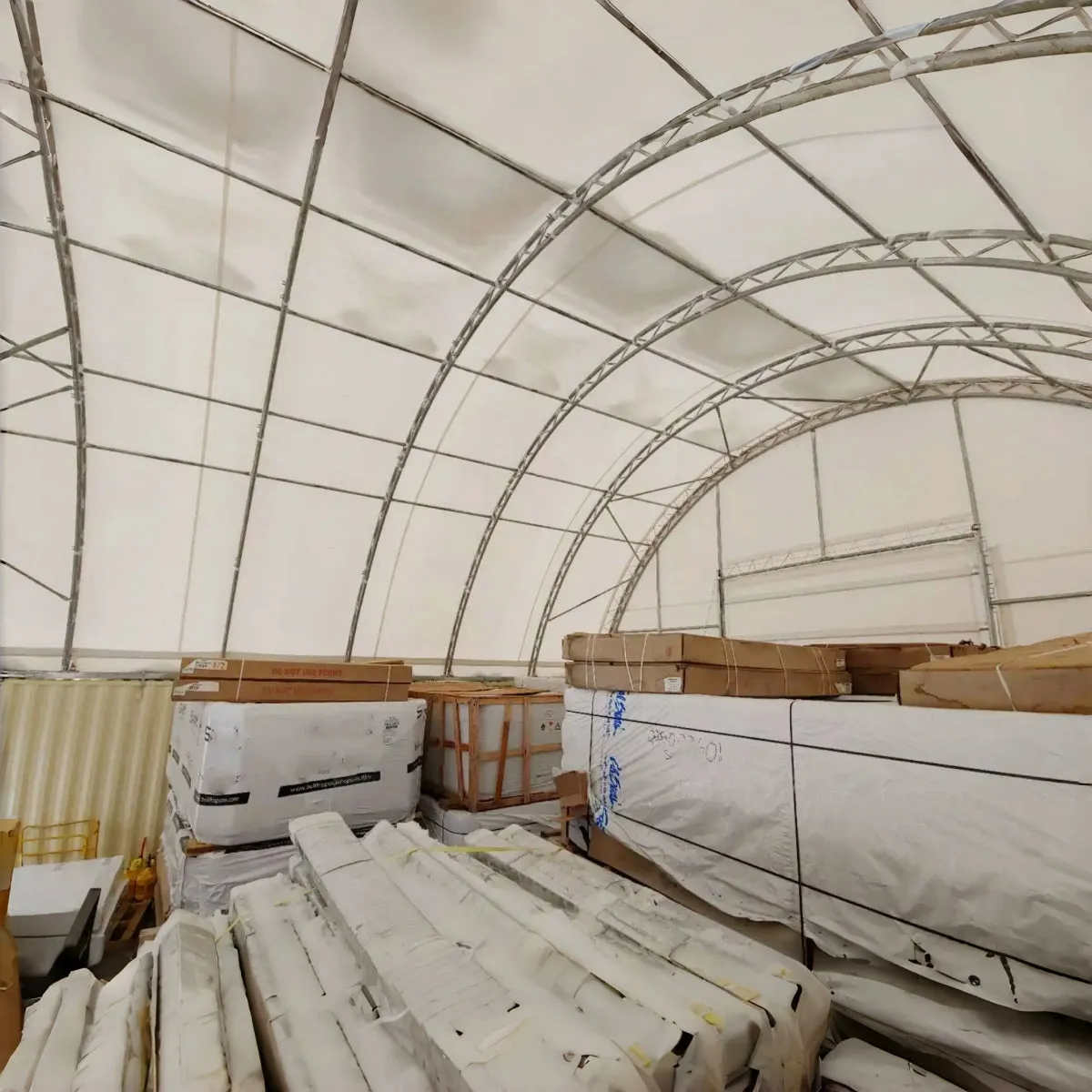

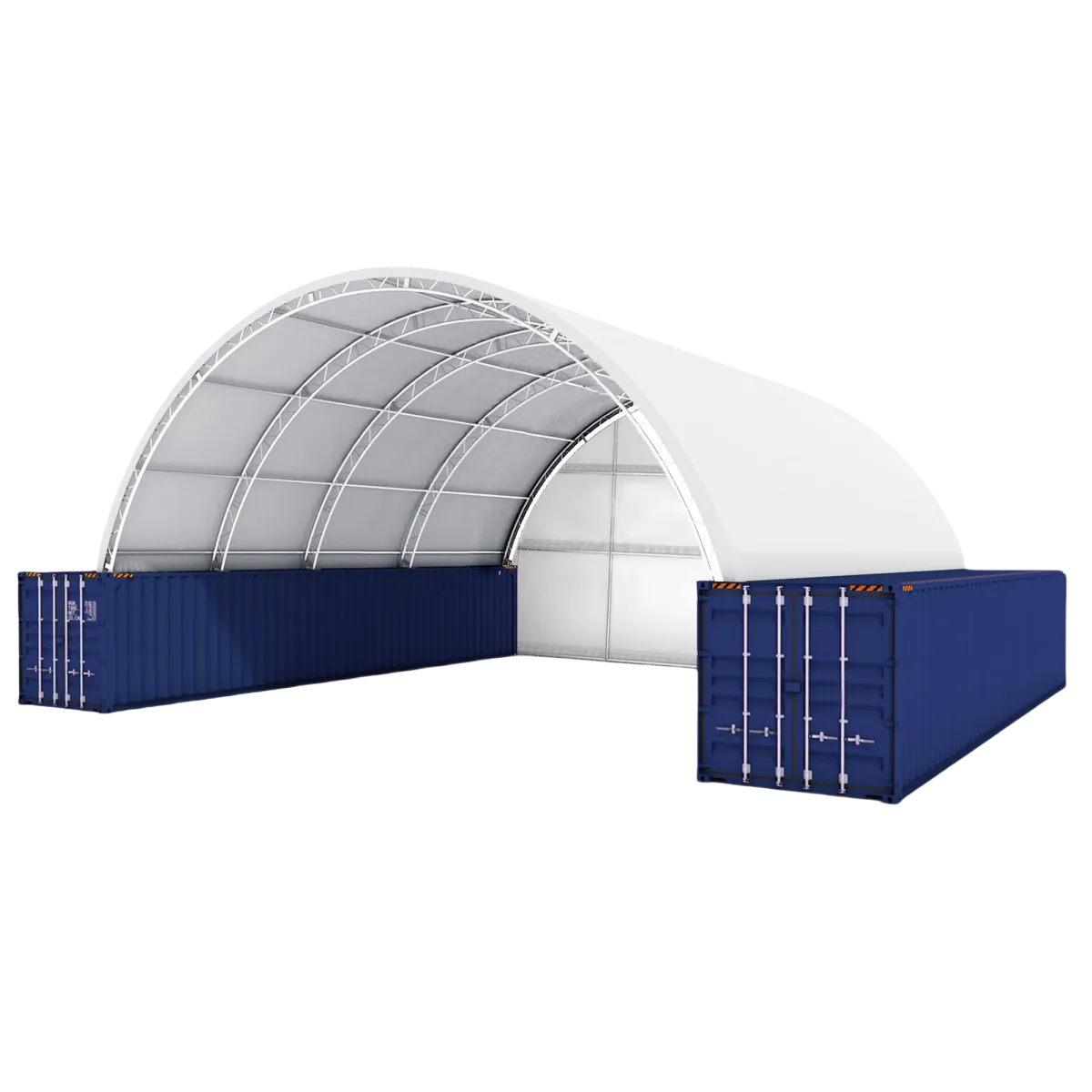

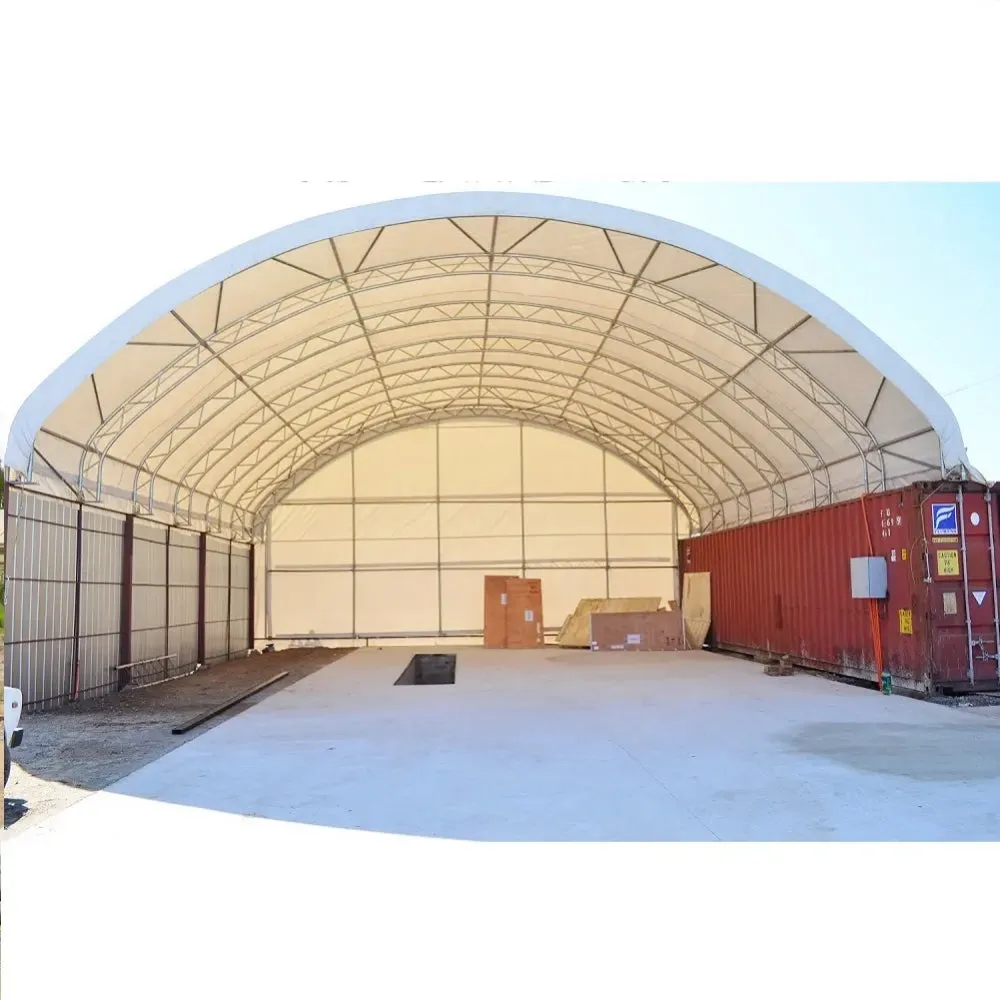

Introducing our 40x40x15 ft Container Shelter with Closed Back Panel, designed for robust protection and versatile storage. This durable structure features a closed back panel for enhanced security and weather resistance. Ideal for industrial, commercial, or personal use, it offers ample space and a sturdy galvanized steel frame for long-lasting reliability and performance.
Specification
| Description | Specifications |
| Model | C404015 Dome Container Shelter |

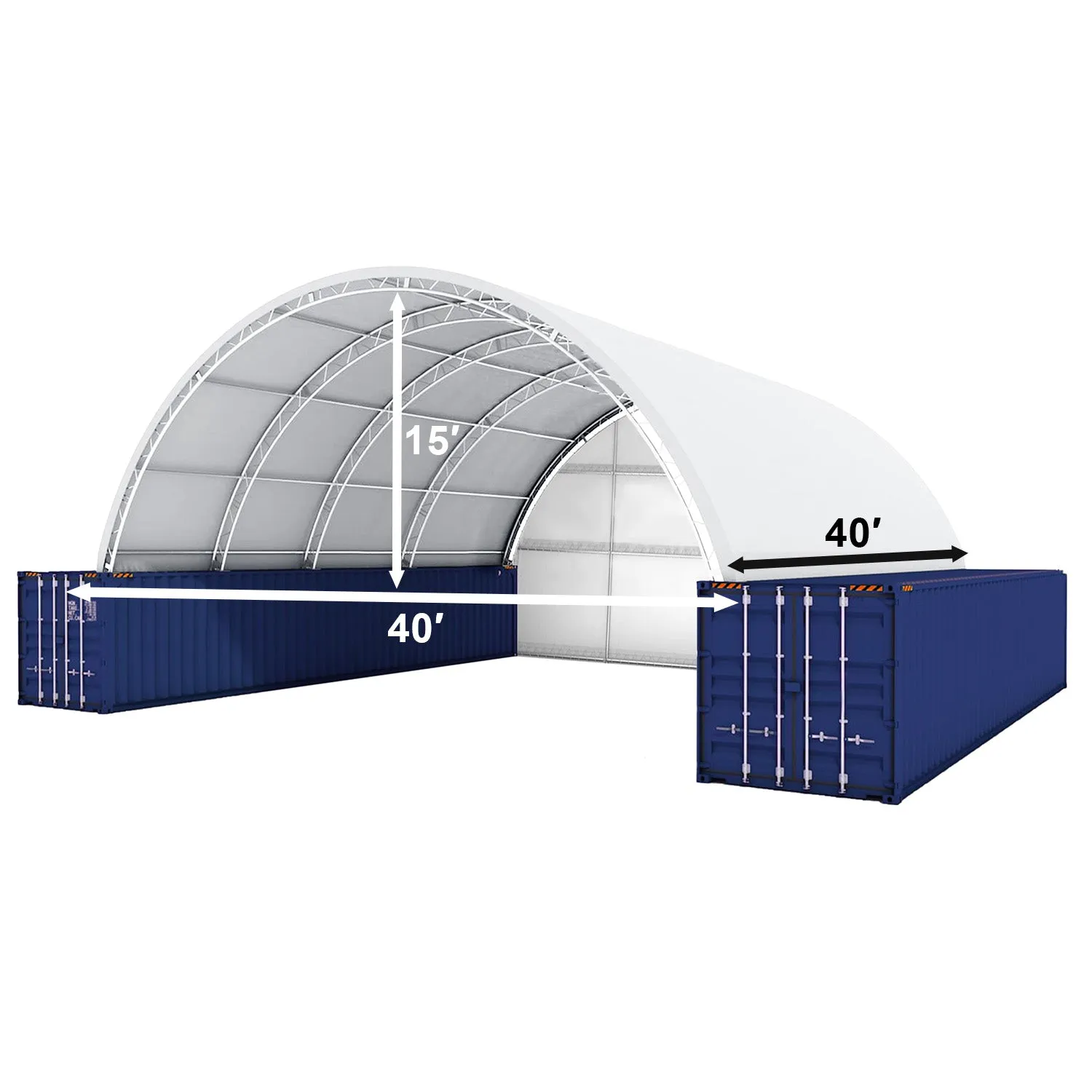

| Dimension (ft) | W40xL40xH15 |

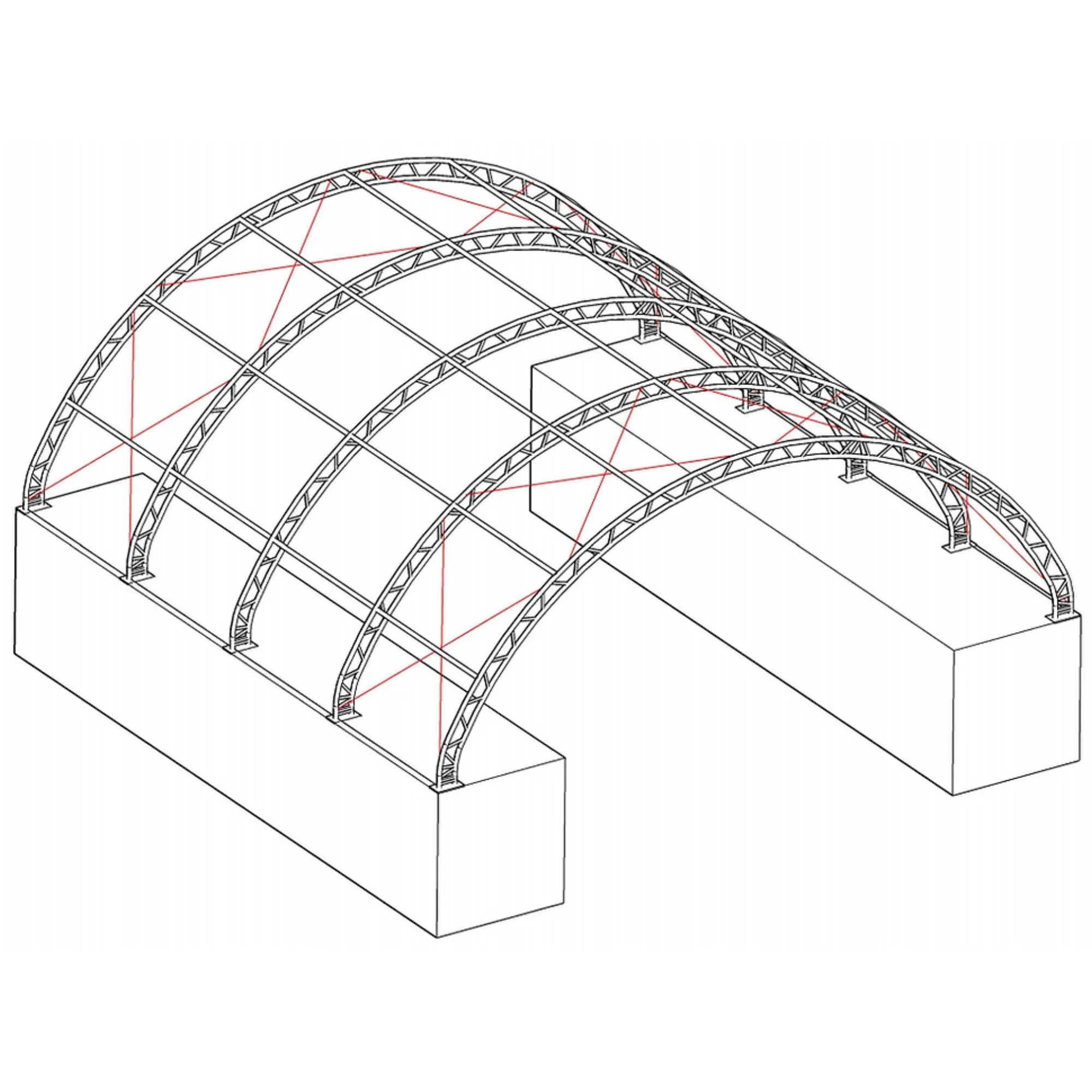

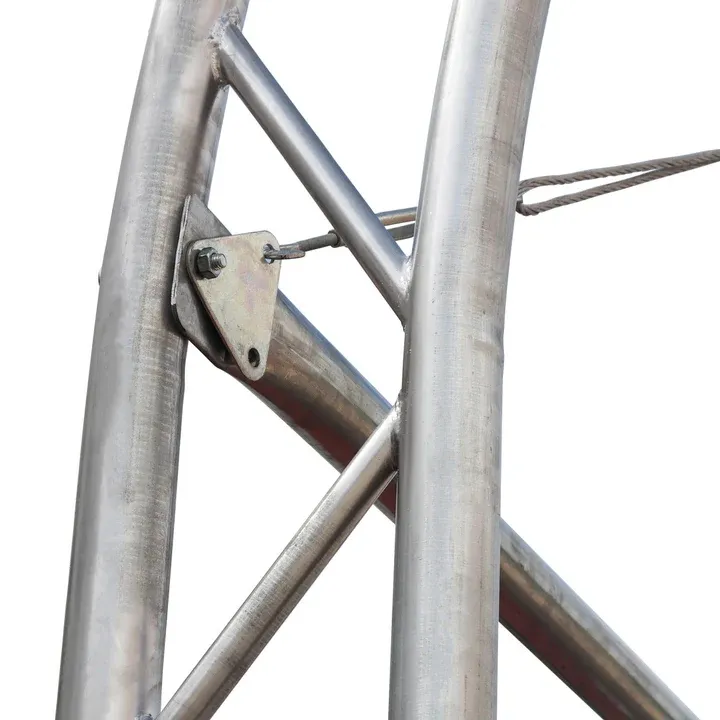

| Frame | Double Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature Resistance | -22 - 158 °F |
| Front/back walls (optional) |
|
| Arch Interval | 9.8 ft |
| Arch Ø (mm) | Ø60x1.5 |
| Purlin Ø (mm) | Ø48x1.5 |
| Tension System | Pipe and Ratchet Tie-Down System |

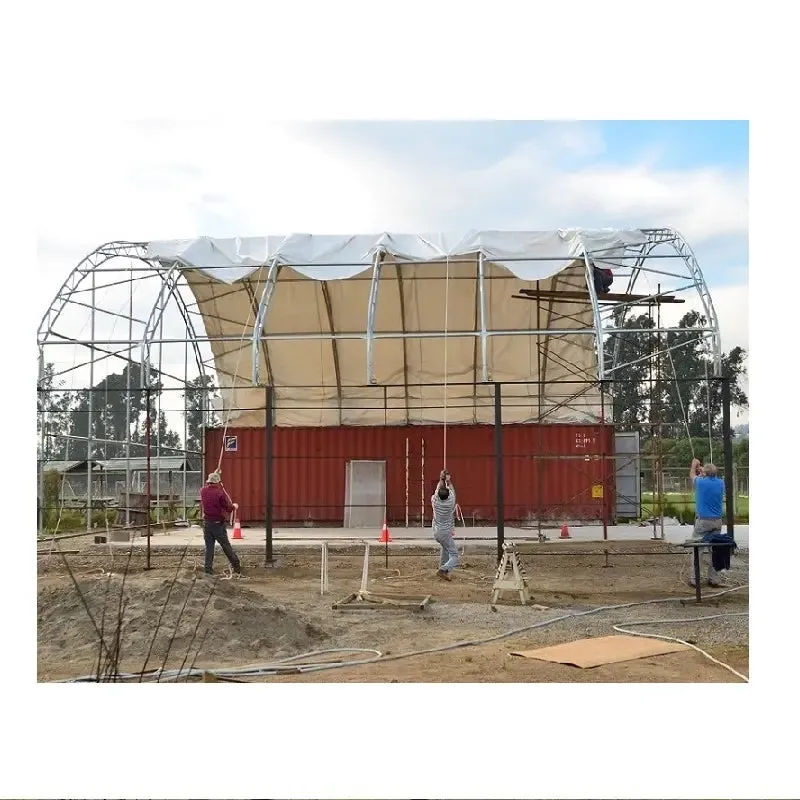

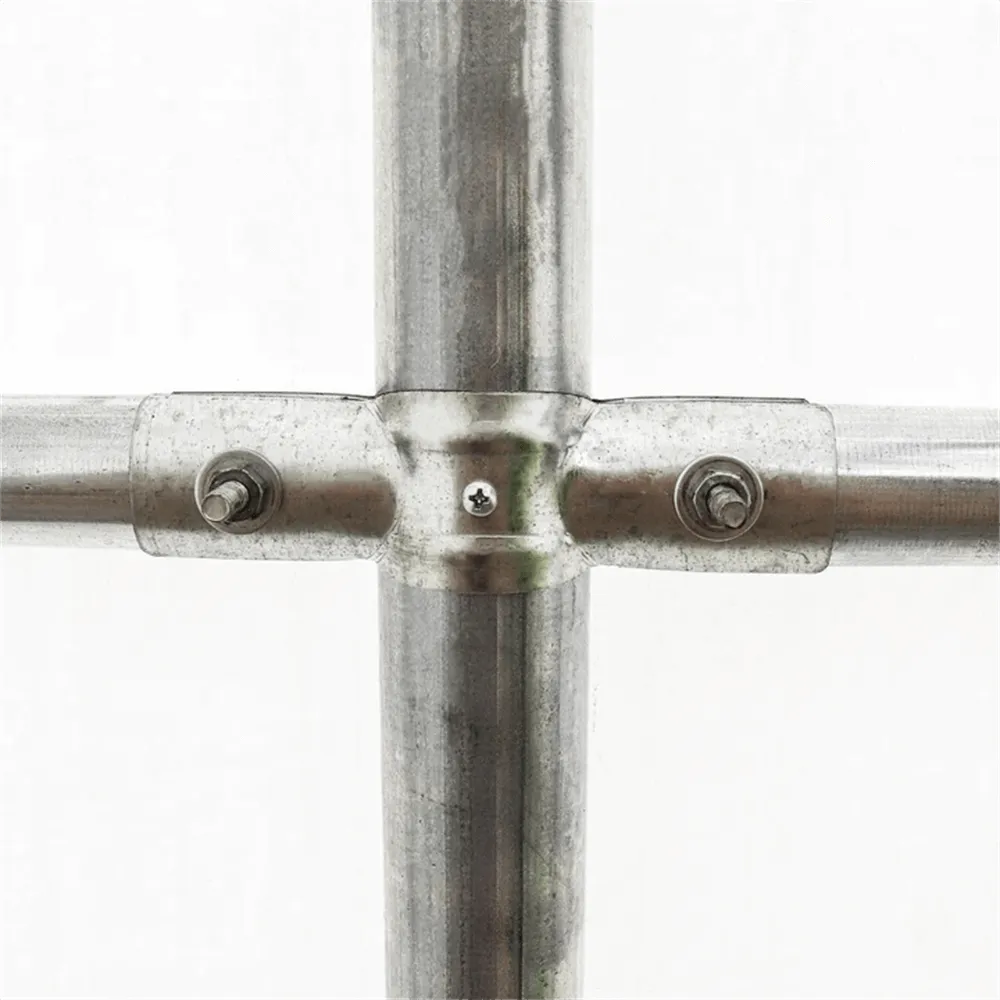

| Easy Installation | Twist lock and clamp installation |
| Weld | Base plates need to be welded on the Containers. |
| Snow Load | 52 lbs/ft² |
| Wind Load | 56 miles/h |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15 years |
| Warranty |
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
- Snow-state (Such as Alaska, Colorado, Vermont, etc)customers are strongly advised to opt for double-truss framing.
Package Size
-
Box 1
LxWxH (inch): 131x43x31
Weight (lb): 2100 - Box 2
LxWxH (inch): 124.8x44.1x13
Weight (lb): 794 - A forklift or equivalent is required for unloading.
